SKU: 39689000

NOTE:

• Designed for Large push plates 156 x 197mm.
• For mounting of small push plates 130 x 172mm please order: small push plate + revision shaft 40949000 (sold separately).
• Rapid SL Suitable For Wall Hung Pans

Product Features

• 15 Year Guarantee
• Designed and Engineered in Germany
• 4 Star WELS rating
• GROHE Quality
• Weight Tested to 400kg

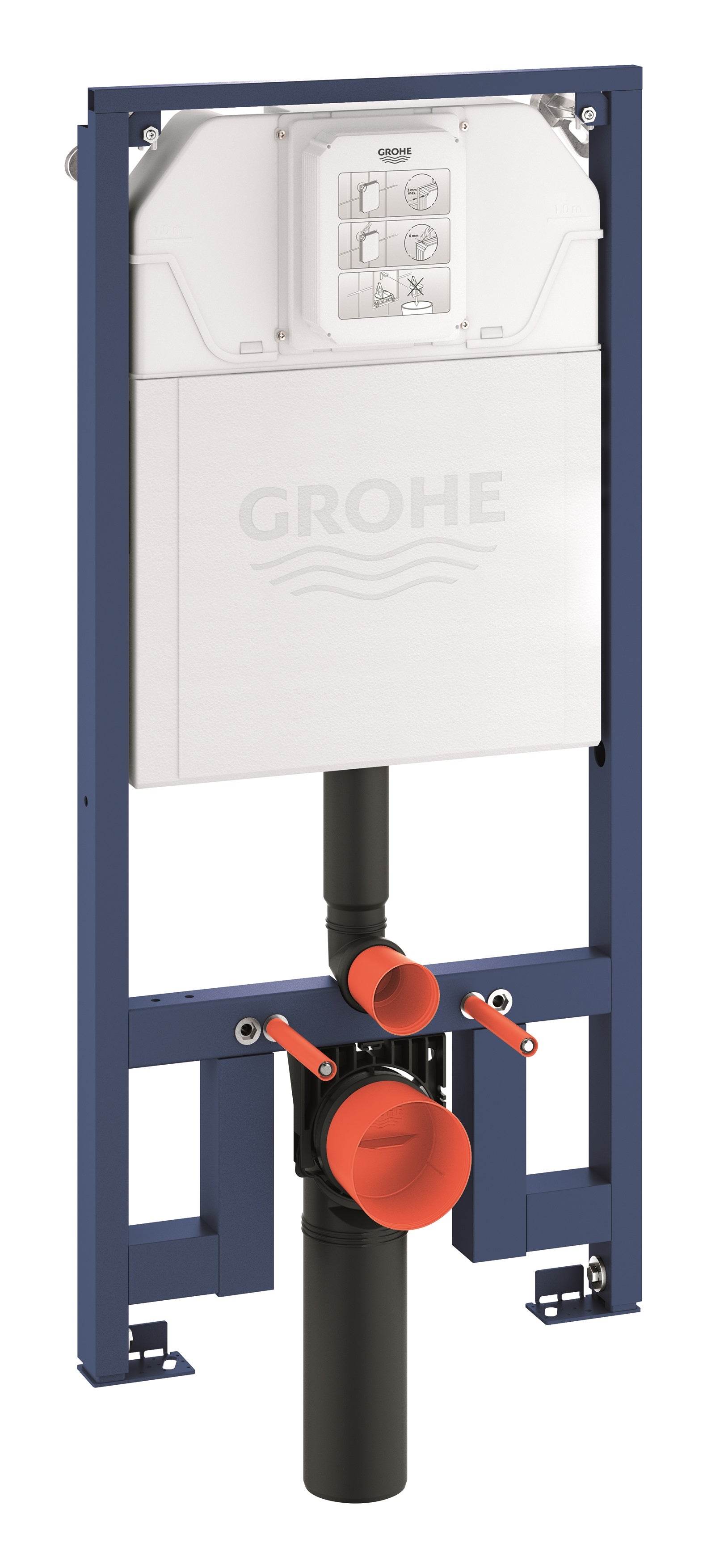

• Powder coated steel frame, self-supporting
• For on-the-wall (wall hung) installations

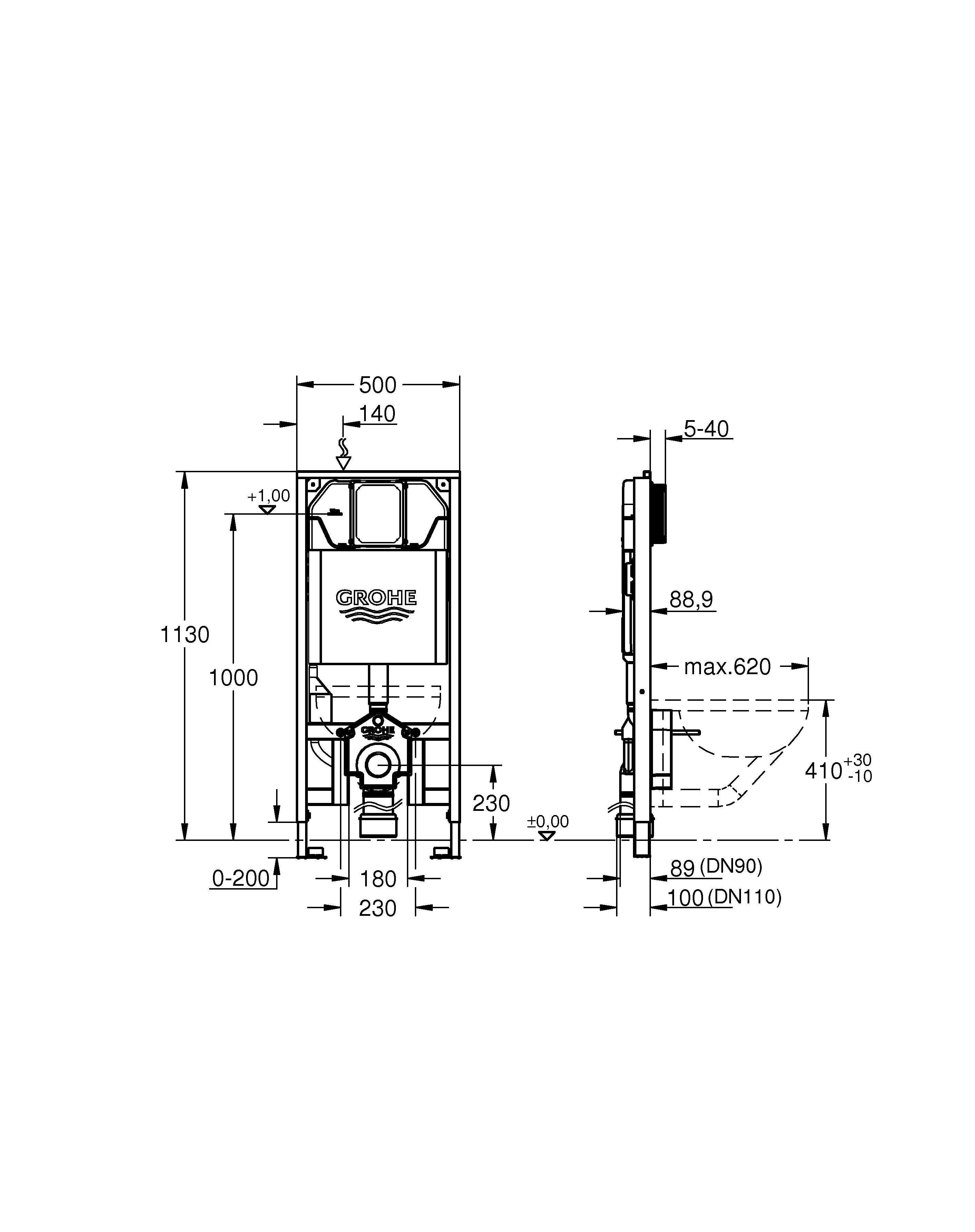

• Distance of fixing bolts 180/230 mm
• Pneumatic discharge valve offering dual flush operation, full flush and half flush.
• Water supply from top
• For vertical push plate use

•           Because the weight of a wall hung toilet pan can crush the wall lining if a plaster board is used, for wall hung pans the internal wall lining must be a material with a high tensile bond strength such as Villa board with a min thickness of 9mm.
