SKU: 39596000

NOTE:

• Designed for Small Push Plate 130 x 172.
• For mounting of Large flush plates 156 x 197 mm please order: large push plate + revision shaft 66791000 (sold separately)
• Rapid SLX Suitable For Sensia Arena Wall Hung Shower Toilet & Other Wall Hung Pans
• REQUIRED 150MM CAVITY

Product Features

• 15 Year Guarantee

• Designed and Engineered in Germany

• 4 Star WELS rating
• GROHE Quality

• Weight Tested to 400kg
• Powder coated steel frame, self-supporting
• With integrated power socket
• Ready for shower toilets (water) Sensia Arena

• For on-the-wall (wall hung) installations

• With fixed connections
• Quick adjustment, lockable

• 2 WC fixing bolts
• Fixing device for ceramic

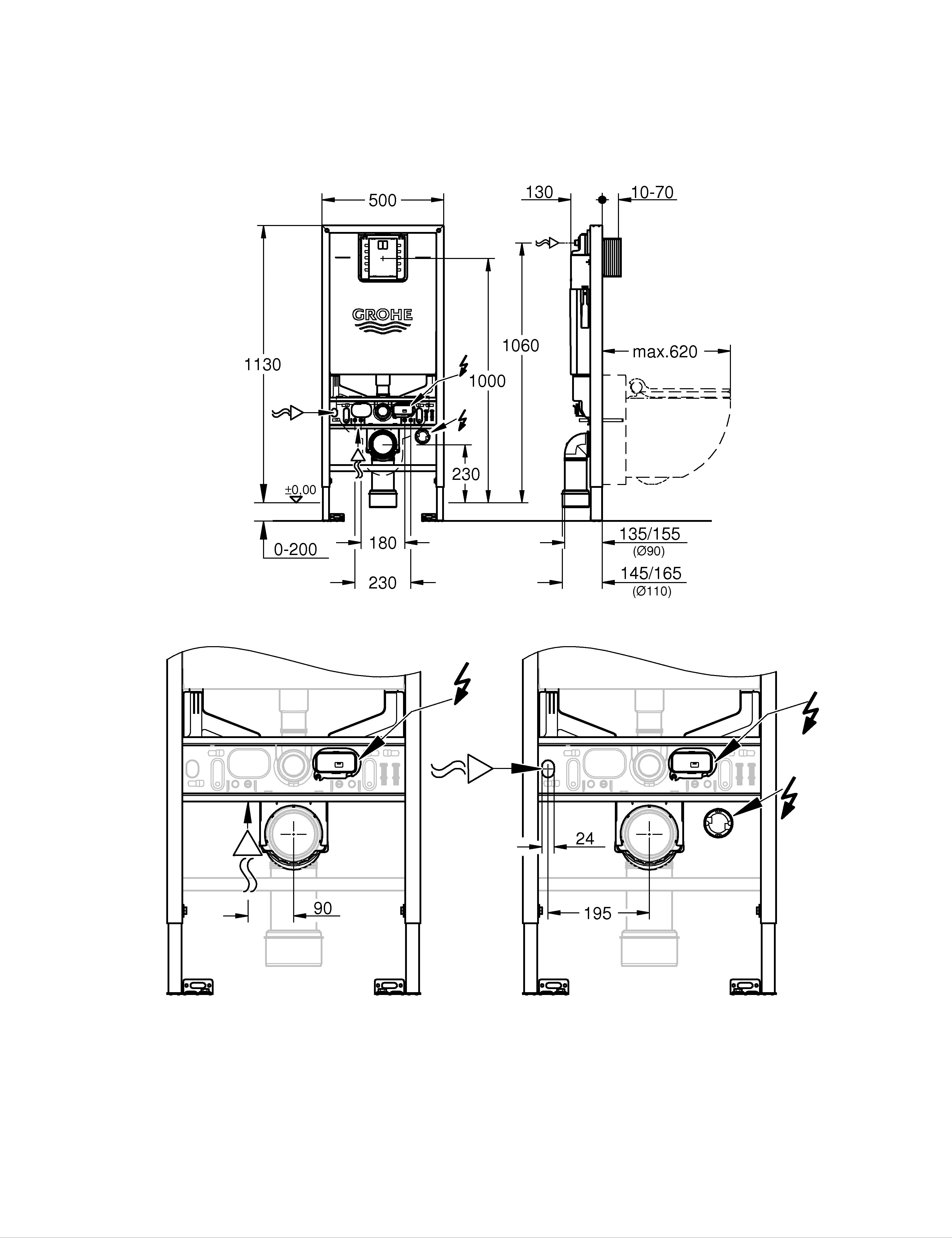

• Distance of fixing bolts 180/230 mm
• Outlet bend Ø 90 mm
• Depth adjustable
• Reducer Ø 90/110 mm
• Inlet and outlet connecting set
• Pneumatic discharge valve offering dual flush operation, full flush and half flush.
• Water supply from right, back or top
• Low noise
• Fully insulated against condensation
• ½" water supply connection including integrated angle valve and push fit flexible hose union
• For vertical push plate use

•           Because the weight of a wall hung toilet pan can crush the wall lining if a plaster board is used, for wall hung pans the internal wall lining must be a material with a high tensile bond strength such as Villa board with a min thickness of 9mm.
